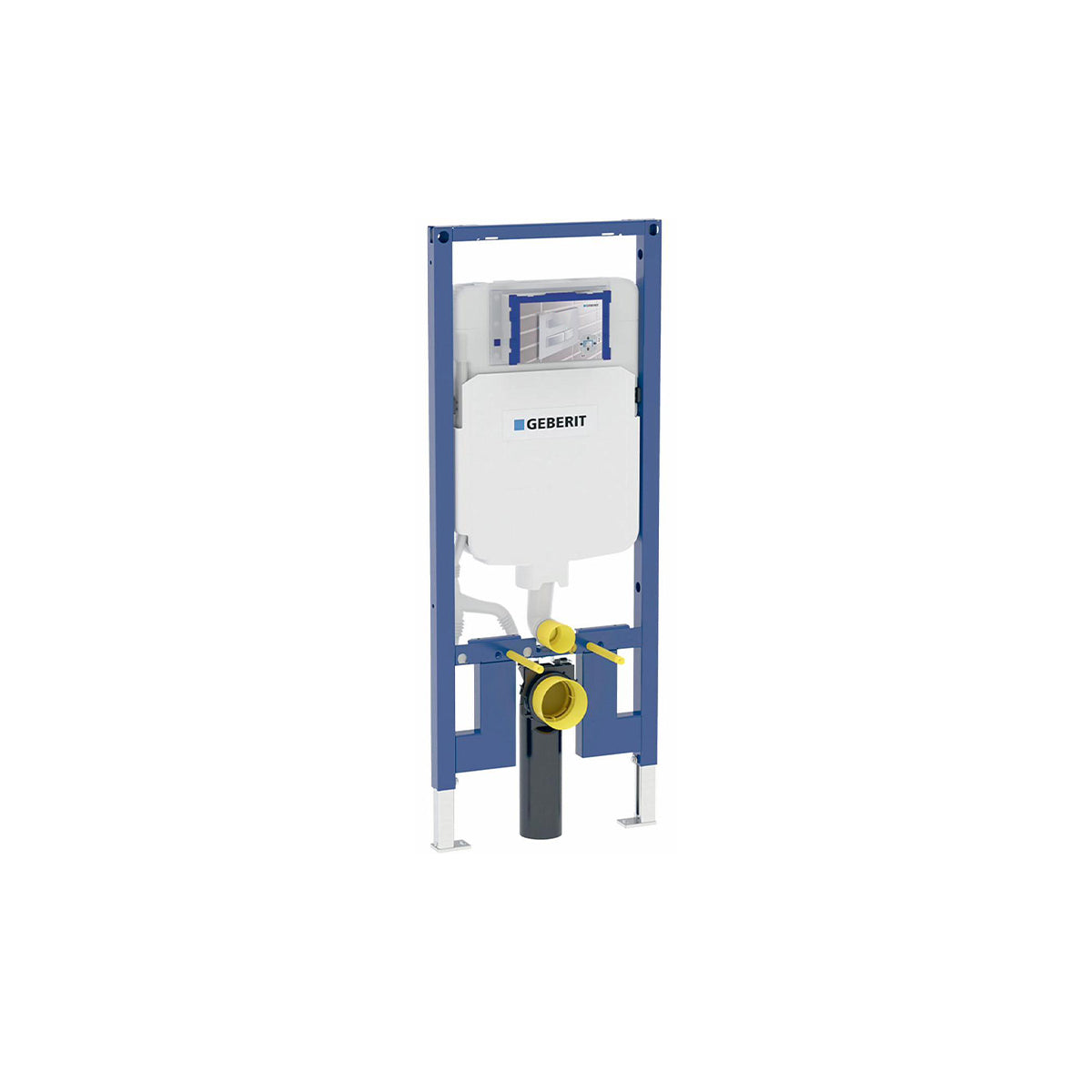

2.4 CARRIER FOR Wall-Mount Toilets
• Water consumption – Dual-flush system allows 1.6/0.8 GPF (6.0/3
LPF), giving effective flush volume of 1.0 GPF (3.8 LPF)
• Anti-siphon fill valve
• Impact resistant high density polyethylene (HDPE) tank, insulated
to prevent condensation
• 16-gauge, powder-coated, structural-steel tubing rated to 880 lbs.
(400 kg) without damage to finished wall or carrier unit
• Bowl rim height adjustments from 15” to 19” (381 to 483 mm)
• 47” (1190 mm) nominal frame height
• For finished walls up to 31/2” (9 cm) thick
• Medium inspection opening for Sigma series flush actuator plates
• Includes installation and rough-in materials
